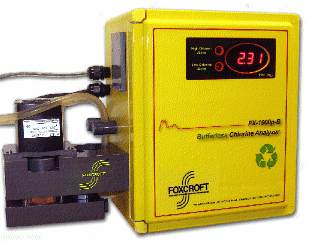

The Foxcroft FX-1000P-B Bufferless Amperometric Chlorine Residual Analyzer is accurate and environmentally friendly, requiring absolutely no chemicals or reagents.
It is ideally suited for online monitoring of Free chlorine residuals in drinking water or potable process waters that have a stable pH at or below 7.0, and low total alkalinity.
Residual readings are instantaneous and do not rely on the “sample and hold” method. The standard operating range is 0-5 PPM, and is field adjustable.
The measuring cell uses a large 24K bare gold electrode rather than a membrane that can foul or clog. Continuous cell mixing and cleaning with solid-state analog electronics provide stable, drift free, residual readings and output signals. Electronic isolation eliminates problems from “ground-loop” and ensures operator safety. For control applications we recommend our model FX-1000P
Product Features:
- EPA approved online amperometric test method
- No toxic discharge or permit requirements
- True amperometric test method
- Determines FREE chlorine residual only
- Application: Drinking water
- Simple to calibrate and operate
- Low maintenance design
- Continuous, isolated, 4-20 milliamp output signal
- Built-in high and low alarm relays
- Field-adjustable range
- High range capabilities to 60 PPM (mg/l) without dilution and higher with optional dilution panel
To download a PDF of this product specification sheet click HERE
To download a PDF list of available parts for this product click HERE
