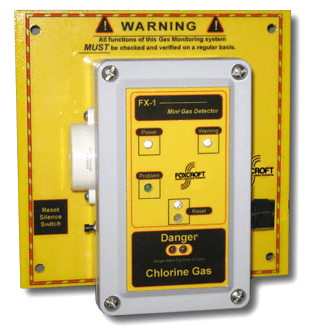

The FX-1 is a compact single channel continuous gas leak detector that is simple to install: just mount it to the wall and plug it in! Of course testing and calibration is recommended.
Proven electrochemical sensor technology detects toxic gas or oxygen in the low parts per million (ppm) or percent (%) of oxygen levels.
During normal operation a green LED illuminates to confirm the unit is functional. Warning and Danger alarms indicate a specific concentration of gas has been reached by illuminating a yellow LED and a flashing red LED. Includes a 100 dB audible alarm, reset button, and a 10 amp relay for external alarm devices.
Housed in a NEMA 4X fiberglass enclosure, the FX-1 is easy to install and operate. The modular power supply is available with AC plug adapters for the UK, Asia, Eastern Europe, Australia.
Product Features:
- ALL-IN-ONE ELECTRONICS SENSOR PACKAGE
- TWO ALARM LEVELS - WARNING AND DANGER
- FLASHLIGHT TEST, SILENCE, AND RESET
OF ALARMS
- AUDIBLE AND VISUAL ALARMS
- CELL FAILURE ALARM
- NEMA 4X FIBERGLASS ENCLOSURE
- LOW MAINTENANCE
|
- EASY INSTALLATION
- PROVEN ELECTROCHEMICAL SENSOR
TECHNOLOGY
- MINI SIZE, 7” (W) x 7.0” (H)
(mounting plate) x 3.5” deep
- FAST RESPONSE FOR INCREASED SAFETY
- AUXILIARY RELAY
- UNIVERSAL POWER SUPPLY 115/230V,
50/60 Hz AC WITH MODULAR PLUG
ADAPTER FOR THE U.S. AS STANDARD
|
To download a PDF of this product specification sheet click HERE
